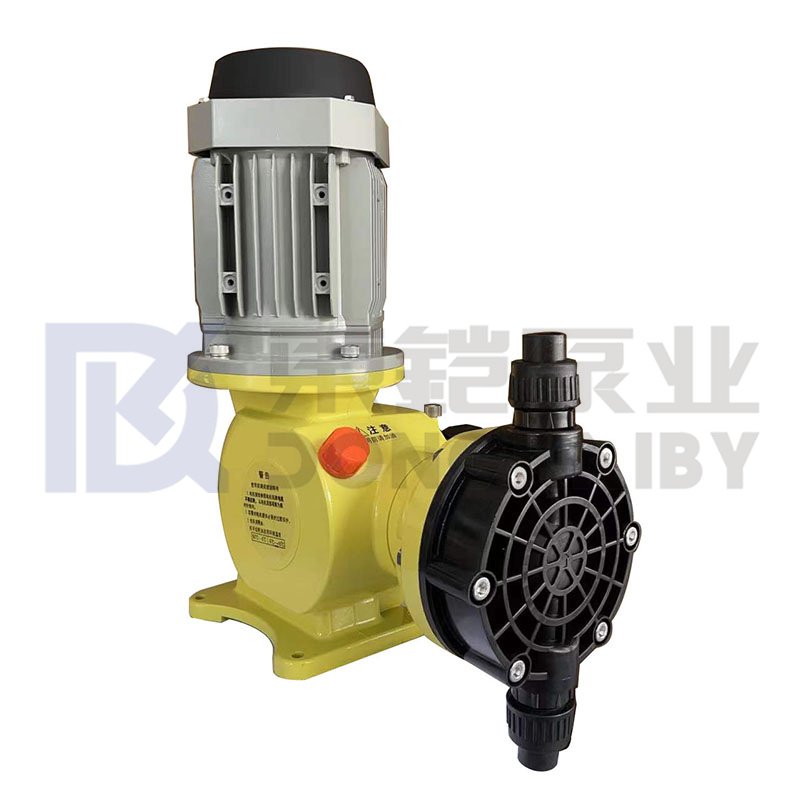

Chemical Metering Pump

The Chemical Metering Pump is a positive displacement chemical dosing device with the ability to vary capacity manually or automatically as process conditions require. Approximately 90% of all pumps sold are transfer pumps, which are designed to move liquids from point A to point B. But Chemical Metering Pumps are specialty pumps: They’re designed for precision-injection of chemicals, acids, bases, corrosives or viscous liquids and slurries.

Send Inquiry    PDF DownLoad

Product Description

1.Product Introduction

For safe and accurate dosing of sulphuric acid,we use PVDF material for the Sulfuric acid dosing pump head. The PVDF pump head and the full PTFE membrane are very durable and ensure that the Sulfuric acid dosing pump can do its job properly and for a long time. This Sulfuric acid dosing pump is also available as a proportional controllable dosing pump (4-20 mA, Volt, Pulse) and as a High Flow dosing pump up to 2000 litres per hour at 3bar. Dongkai Chemical Metering Pump have A rugged design for the toughest challenge. Our Chemical Metering Pumps feature rugged aluminum construction specifically engineered to handle higher output applications in harsh environments. The Chemical Metering Pump is the right choice when choosing a pump for water treatment applications, like coagulation and flocculation. By combining a heavy-duty industrial drive with state-of-the-art design, the Chemical Metering Pump offers a mechanically actuated diaphragm that provides smooth output with reduced potential for system shock and hydraulic oil contamination. External speed control and stainless steel fastenersmake this powerhouse pump perfect for water treatment applications


2.Product Parameter (Specification)

material of pump head

PVC; PVDF; SS304,SS316

Pressure

3-12Bar

Flow

12-2000L/H

Diaphragm

PTFE diaphragm

Power

380V 3 phase on standard, single phase or other voltage on request; EX-proof motor is available on request.

Application

Chemical Processing


Standard Features
High flow rates up to2000 Liters/hr.
Mechanically actuated diaphragm liquid end eliminates flow restrictions
Durable, metallic housing designed to withstand tough environments
High efficiency motors minimize heat buildup
Reliable low flow performance is a result of high performance check valves with machined seats
Precision stroke adjustment can be operated while the pump is running or stopped
Liquid Temperature Range – 14° to 122° F (-14° to 50° C)
Coating includes a 2-part epoxy
Optional Features
Safety valves
Back pressures valves
Pulsation dampeners
Degassing valve
Repair & preventive maintenance kits
Calibration columns

Other details
Chemical Metering Pump used in Chemical Processing, these pumps possess the following specifications:

Motor driven with mechanically linked diaphragm
Steady state accuracy up to ± 2 %
Accuracy at repeatability ± 3 %
Well suitable for continuous duty
Accurate micrometric stroke control arrangement
Splash type lubrication in gear box
Negative suction upto 1.5 M maximum
Automatic capacity adjustment with reference to process parameters (optional)


3.Deliver,Shipping And Serving


4.FAQ

How many years have your company made this kind of equipment?
For about 10 years.

How can I to be your agent in my country?
You are the pump dealer, annual sale is not short in 500000 us dollars.

Do you provide free spare parts ?
Spare parts require fees.
